Kilns are not kept in stock. They are built to order and are drop shipped from the manufacturer. You will be contacted with estimated shipping quotes as well as lead times once the order is finalized with the manufacturer.
Model - 1414FLE (240 or 208 Volt)
Inside dimensions:
Width: 14 ½"
Depth: 13 ½"
Height at peak: 10"
Fires to Cone 8/2300° F
Maximum firing temperature with quartz viewing window option – 1700°F

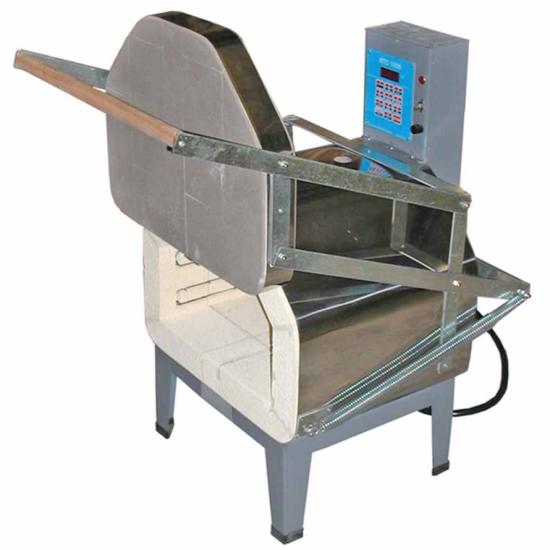

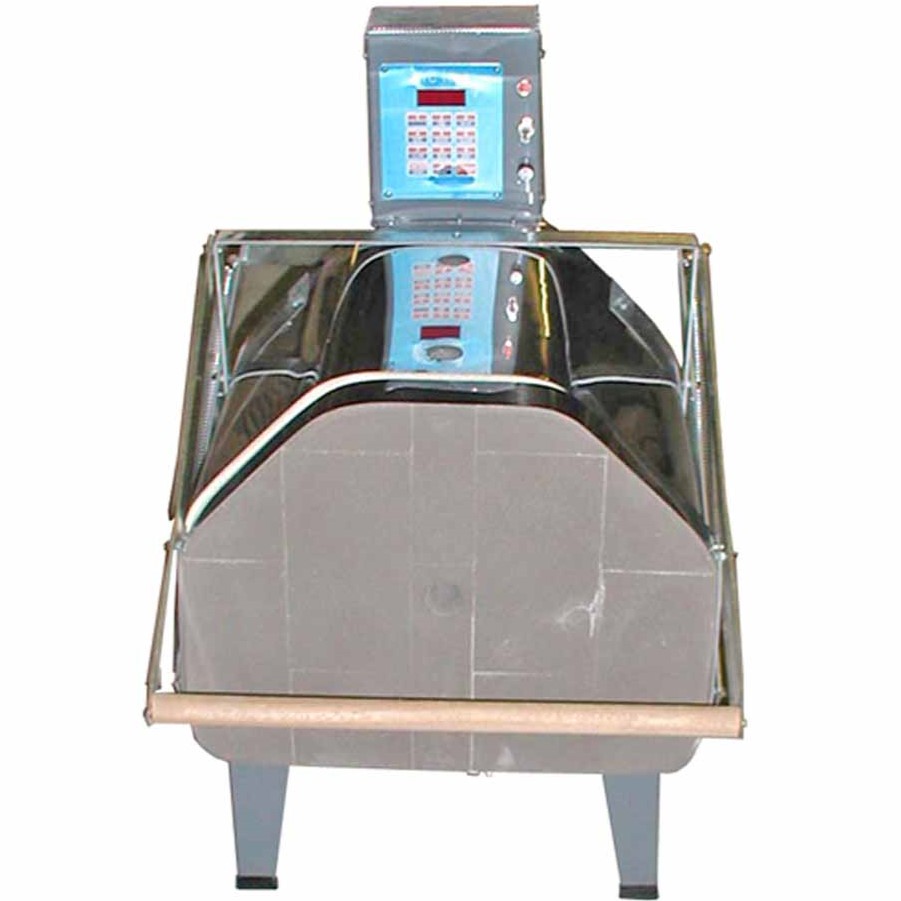

Introducing the Olympic Kiln 1414FLE, an electric model designed to optimize your firing experience with precision and versatility. This kiln is equipped with essential features including a pilot light, attached stand and adurable stainless steel jacket.

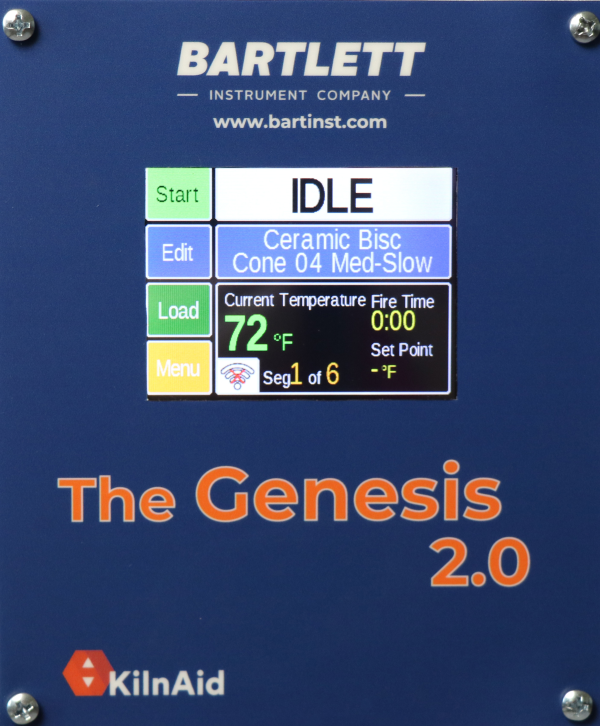

Enhance your firing experience with an optional upgrade, the Genesis touchscreen controller. This upgrade provides expanded functionality with more ramp-hold user programs and multiple features such as delay start, preheat, cone offset, skip-step, and more, ensuring precise firings every time. Access messages and information for comprehensive monitoring of firing profiles and current segment status, along with a cone table for easy lookup of temperature and cone number equivalents. Additional options include a bead door, quartz viewing window, Type S thermocouple, castors, vent, and more, allowing for customization to suit your specific needs.
For efficient firing organization, our Furniture Kits for front-loading electric models offer 2-3 layers of shelving, assorted posts, and a one-pound bag of kiln wash. Choose between our standard furniture kit or customize your own with shelves and posts in the quantities required.
Experience the reliability and precision of the Olympic Kiln 1414FLE, designed to meet the demands of artists and craftsmen seeking optimal performance in their firing processes.
MODEL |
1414FLE |
WIRING SPECIFICATIONS |
1 PHASE |
Equipped with Lid Lift Assist |
N/A |
Volts |
208 |
240 |
Inside Chamber Dimensions w x d x h (inches) |
14.5 x 13.5 x 10 |
Amps |
17 |
15 |
Cubic Feet |
1.4 |
Watts |
3600 |
Outside Dimensions with Stand or Frame w x d x h (inches) |
26.5 x 18.5 x 22.5 |
Breaker Required |
30 Amp |
20 Amp |
Brick Thickness |
2.5” |
Plug Configuration |
NEMA 6-30 |
Maximum Temperature |
Cone 8 – 2300°F/1260°C |
Copper Wire Size |
#12, #10 if the circuit
is longer than 40 ft |
Est Ship Wt. |
160lbs. |
