Kilns are not kept in stock. They are built to order and are drop shipped from the manufacturer. You will be contacted with estimated shipping quotes as well as lead times once the order is finalized with the manufacturer.
Model - 149FLE (240 - 208 Volt)
Inside Dimensions:
Width: 14 1/2"
Depth: 9"
Height at the peak: 10"
Fires to Cone 8/2300°F
Maximum firing temperature with quartz viewing window option – 1700°F

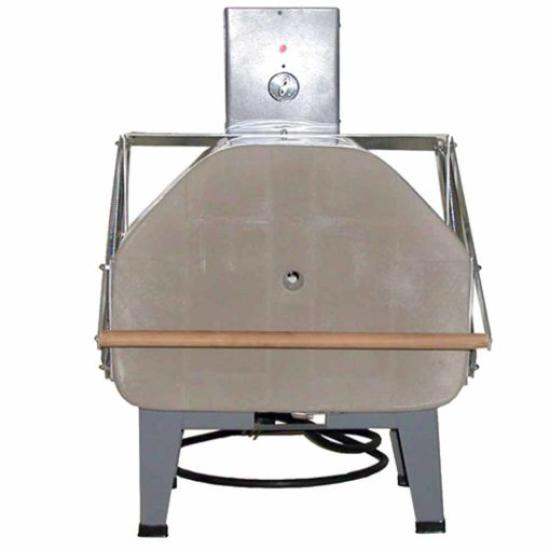

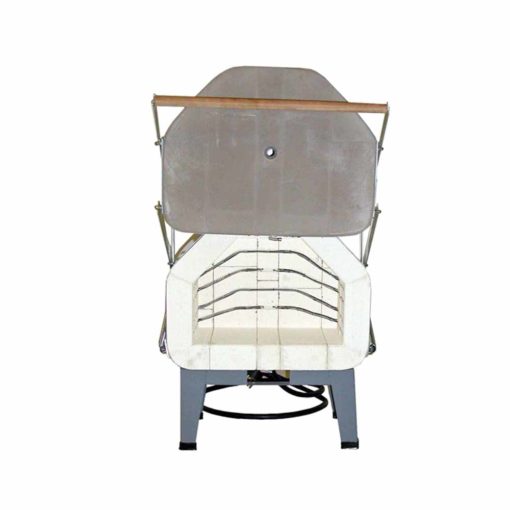

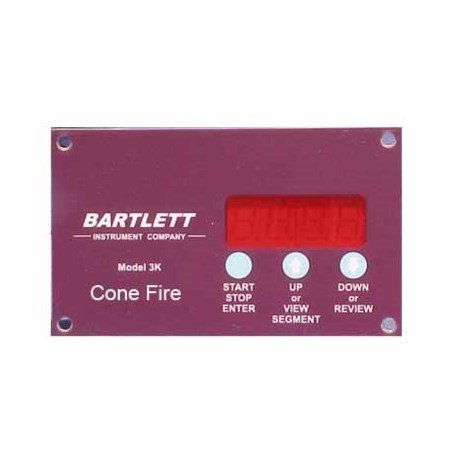

Introducing the Olympic Kiln 149FLE, an electric model designed to elevate your firing experience with precision and versatility. Equipped with essential features including a pilot light, attached stand, and durable stainless steel jacket, the 149FLE also features the Bartlett 3K-CF electronic controller, allowing for intuitive data entry via scrolling through the up and down arrows for desired cone fire or ramp/hold programming.

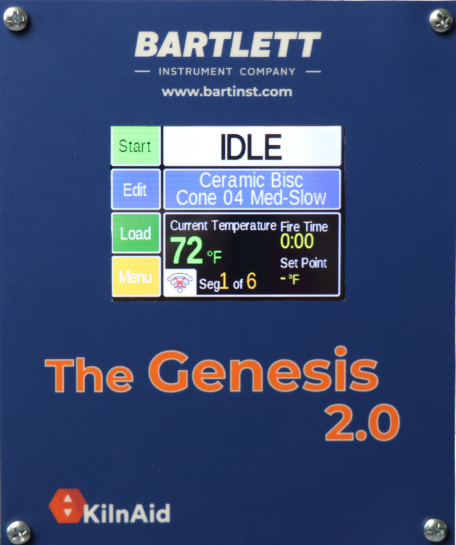

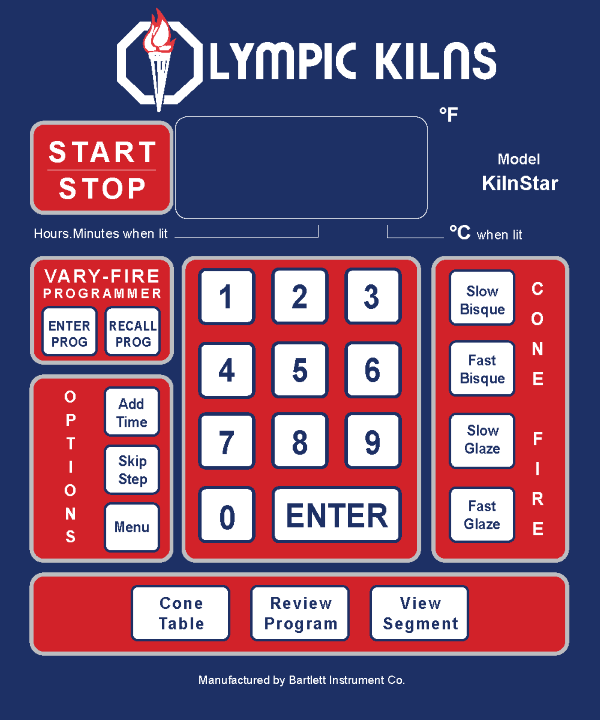

Upgrade options abound with the Olympic Kiln 149FLE, offering the choice between the Genesis touchscreen controller or the 12-key digital KilnStar controller. These upgrades provide enhanced functionality with more ramp-hold user programs and multiple features such as delay start, preheat, cone offset, skip-step, and more, ensuring precise firings every time. Access messages and information for comprehensive monitoring of firing profiles and current segment status, along with a cone table for easy lookup of temperature and cone number equivalents. Additional options include a bead door, quartz viewing window, Type S thermocouple, castors, vent, and more, allowing for customization to suit your specific needs.
For efficient firing organization, our Furniture Kits for front-loading electric models offer 2-3 layers of shelving, assorted posts, and a one-pound bag of kiln wash. Choose between our standard furniture kit or customize your own with shelves and posts in the quantities required.
Experience the reliability and precision of the Olympic Kiln 149FLE, designed to meet the demands of artists and craftsmen seeking optimal performance in their firing processes.
Specific Kiln Information
MODEL |
149FLE |
WIRING SPECIFICATIONS |
1 PHASE |

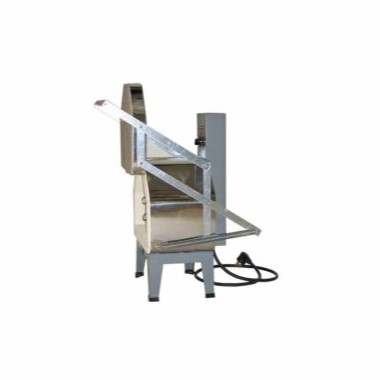

Equipped with Lid Lift Assist |
N/A |
Volts |
208 |
240 |
Inside Chamber Dimensions
w x d x h (inches) |
14.5 x 9 x 10 |
Amps |
17 |
15 |
Cubic Feet |
0.93 |
Watts |
3,600 |
Outside Dimensions with Stand
or Frame w x d x h (inches) |
26.5 x 14 x 22.5 |
Breaker Required |
30 Amp |
20 Amp |
Brick Thickness |
2.5" |
Plug Configuration |
NEMA 6 - 30 |
Maximum Temperature |
Cone 8 - 2300°F/1260°C |
Copper Wire Size |
#12, #10 if the circuit is longer than 40 ft |
Est Ship Wt. |
145lbs. |
